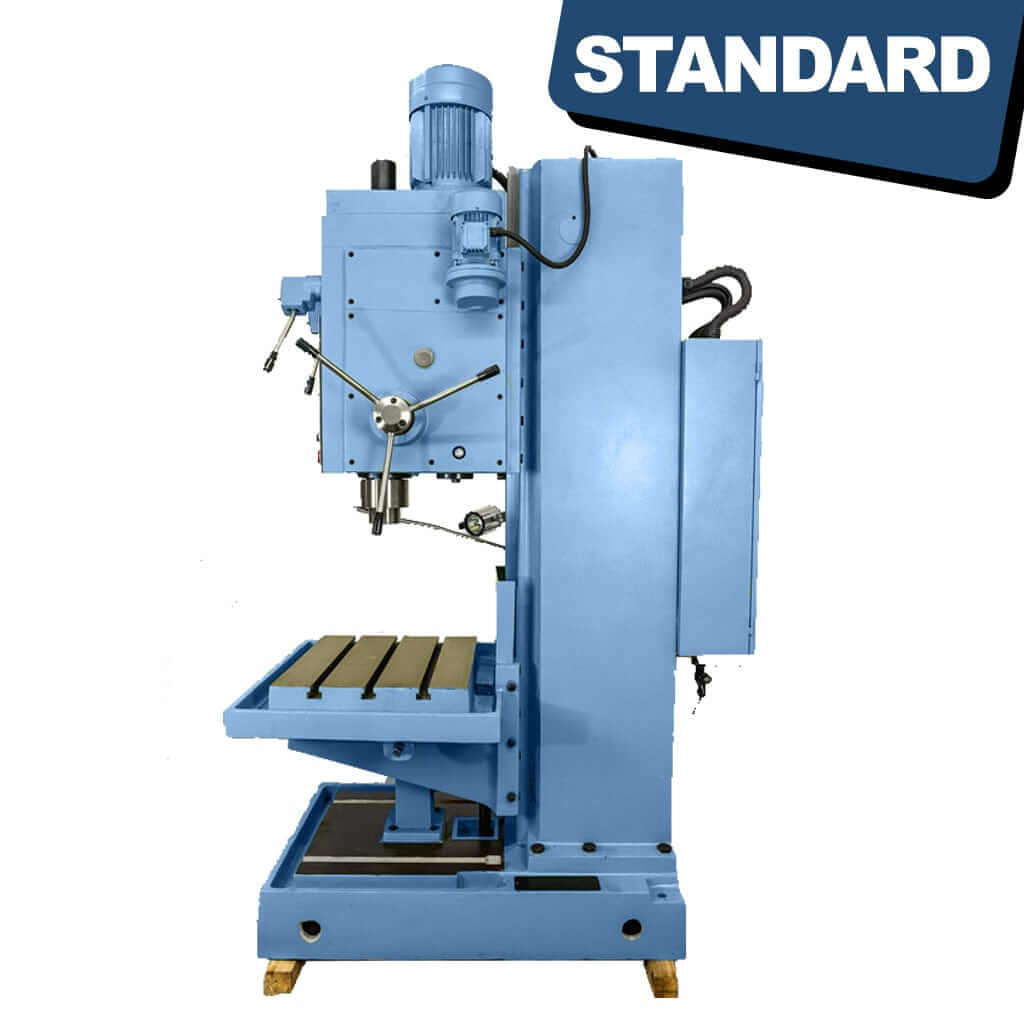

A heavy-duty column-type drilling pedestal machine, the STANDARD DC-50. The machine consists of a robust vertical column with a drilling head at the top, equipped with controls and a sturdy base. The device is designed for industrial-grade drilling operations, featuring a powerful motor, adjustable settings, and precision components.
A side view of the STANDARD DC-50 Heavy Duty Column Type Drilling Pedestal Machine. The machine showcases a vertical column with a drilling head at the top, mounted on a solid base. It displays adjustable handles, a robust frame, and control panels, illustrating its industrial-grade design for precise and heavy-duty drilling operations.
Close-up view of the gear mechanism on the STANDARD DC-50 Heavy Duty Column Type Drilling Pedestal Machine. The gear system, visibly meshed and interlocked, demonstrates the internal components responsible for power transmission and precision control within the heavy-duty drilling machine.

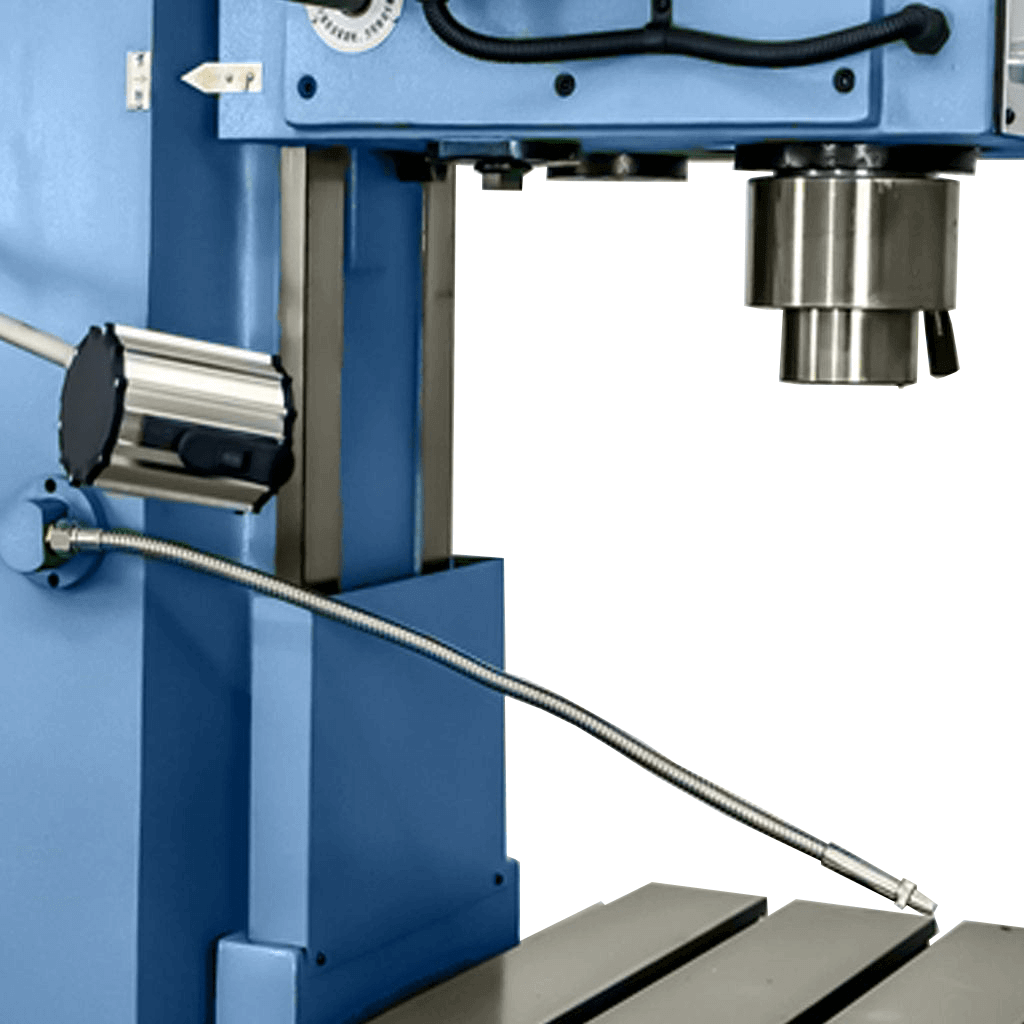

The drill head of the STANDARD DC-50 Heavy Duty Column Type Drilling Pedestal Machine featuring an attached light source. The light is positioned to illuminate the drilling area, enhancing visibility and precision during industrial-grade drilling operations. The drill head displays the sturdy construction and mechanical components necessary for heavy-duty drilling tasks.

STANDARD DC-50 Heavy Duty Column Type Drilling Pedestal Machine

$11,165 $0

*Excludes Local Taxes*

Products are built on order, general delivery is 8~16weeks and includes sea freight to most seaports.


Description

Introducing our robust and reliable STANDARD DC-50 Heavy Duty Column Type Drilling Pedestal Machine, designed to meet the demands of industrial-grade drilling operations.

This powerhouse of a drill press embodies precision, durability, and efficiency, making it an ideal choice for heavy-duty tasks in workshops, manufacturing plants, and metalworking facilities.

Crafted with high-quality materials and engineering expertise, the DC-50 offers exceptional stability and strength, capable of handling a wide range of materials with ease. Its column type design ensures steadfast support and precise drilling, delivering consistent results even in the most demanding environments.

Equipped with a powerful motor, this industrial drill press effortlessly penetrates tough surfaces, providing ample torque and speed control for various drilling applications. Its adjustable settings and versatile spindle speeds cater to different drilling needs, enhancing operational flexibility and productivity.

The DC-50 prioritizes operator safety and convenience, featuring user-friendly controls and built-in safety mechanisms. The ergonomic design and sturdy construction minimize vibration, reducing operator fatigue during prolonged use.

Whether for metalworking, woodworking, or other heavy-duty tasks, this drill press is engineered to deliver reliability and accuracy, meeting the stringent requirements of industrial operations.

Invest in the STANDARD DC-50 Heavy Duty Column Type Drilling Pedestal Machine for a superior drilling experience that combines power, precision, and durability. Elevate your workshop's capabilities with this exceptional heavy-duty industrial drill press.

Main Features:

  • Box type DC-50 Vertical Drilling Machine series offer the ability to perform drilling, boring, reaming, countersinking, and tapping operations.
  • Boasting high precision, exemplary rigidity, and hearty torque, this machine has a low noise output and a wide array of adjustable speeds.
  • This machine features an automatic tapping reverse structure, allowing for the principle axis to reverse counterclockwise automatically and making tapping into head and deep holes more accessible.
Specifications
Description Metric Imperial
Drilling Capacity Ø50mm Ø1.97 inches
Spindle Taper MT5 MT5
Quill Travel 250mm 9.84 inches
Spindle box travel (manual) 200mm 7.87 inches
No of spindle speeds 12 steps 12 steps
Spindle Feed Steps 9 steps 9 steps
Spindle Speed 31.5~1400rpm 31.5~1400rpm
Spindle Feeds  0.056~1.80mm/rev 0.0022~0.071 in/rev
Table Size 560x480mm 22.05x18.90 inches
Vertical Travel  300mm 11.81 inches
Spindle and Worktable  750mm 29.53 inches
Main Motor  3kW 3kW
Dimensions 1090x905x2465mm 42.91x35.63x97.05 inches
Weight 1250kg 2755.78 pounds


        Delivery

        Delivery is 8-12 Weeks from Deposit

        How to use a Heavy Duty Column Type Pedestal Drill
        1. Set up the machine: Start by mounting the machine on a level and stable surface, and make sure the power supply is properly connected. Adjust the height of the table to match the workpiece, and use clamps to secure the workpiece to the table if necessary.
        2. Choose the correct drill bit: Select the correct drill bit for the material you are drilling and make sure it is properly secured in the drill chuck.
        3. Adjust the speed: Adjust the speed of the spindle to match the material and size of the drill bit. A slower speed is typically recommended for larger and harder materials, while a higher speed is better for smaller and softer materials.
        4. Adjust the depth of the hole: Use the adjustable stop collar on the spindle to set the desired depth of the hole. Make sure to set the stop collar before starting the machine, as it is difficult to adjust while the machine is running.
        5. Start drilling: Turn on the machine and carefully align the drill bit with the marked center of the workpiece. Apply gentle pressure to start the drilling process, and continue until the stop collar reaches the desired depth.
        6. Turn off the machine: Once the drilling is complete, turn off the machine and carefully remove the workpiece from the table. Inspect the hole to make sure it meets your specifications, and make any necessary adjustments to the machine before starting the next operation.

        It is important to always wear proper safety gear when using a heavy-duty column type drilling pedestal machine, including safety glasses, gloves, and hearing protection. Also, be sure to follow the manufacturer's instructions and guidelines for safe and effective use of the machine.

        Description

        Introducing our robust and reliable STANDARD DC-50 Heavy Duty Column Type Drilling Pedestal Machine, designed to meet the demands of industrial-grade drilling operations.

        This powerhouse of a drill press embodies precision, durability, and efficiency, making it an ideal choice for heavy-duty tasks in workshops, manufacturing plants, and metalworking facilities.

        Crafted with high-quality materials and engineering expertise, the DC-50 offers exceptional stability and strength, capable of handling a wide range of materials with ease. Its column type design ensures steadfast support and precise drilling, delivering consistent results even in the most demanding environments.

        Equipped with a powerful motor, this industrial drill press effortlessly penetrates tough surfaces, providing ample torque and speed control for various drilling applications. Its adjustable settings and versatile spindle speeds cater to different drilling needs, enhancing operational flexibility and productivity.

        The DC-50 prioritizes operator safety and convenience, featuring user-friendly controls and built-in safety mechanisms. The ergonomic design and sturdy construction minimize vibration, reducing operator fatigue during prolonged use.

        Whether for metalworking, woodworking, or other heavy-duty tasks, this drill press is engineered to deliver reliability and accuracy, meeting the stringent requirements of industrial operations.

        Invest in the STANDARD DC-50 Heavy Duty Column Type Drilling Pedestal Machine for a superior drilling experience that combines power, precision, and durability. Elevate your workshop's capabilities with this exceptional heavy-duty industrial drill press.

        Main Features:

        • Box type DC-50 Vertical Drilling Machine series offer the ability to perform drilling, boring, reaming, countersinking, and tapping operations.
        • Boasting high precision, exemplary rigidity, and hearty torque, this machine has a low noise output and a wide array of adjustable speeds.
        • This machine features an automatic tapping reverse structure, allowing for the principle axis to reverse counterclockwise automatically and making tapping into head and deep holes more accessible.
        Specifications
        Description Metric Imperial
        Drilling Capacity Ø50mm Ø1.97 inches
        Spindle Taper MT5 MT5
        Quill Travel 250mm 9.84 inches
        Spindle box travel (manual) 200mm 7.87 inches
        No of spindle speeds 12 steps 12 steps
        Spindle Feed Steps 9 steps 9 steps
        Spindle Speed 31.5~1400rpm 31.5~1400rpm
        Spindle Feeds  0.056~1.80mm/rev 0.0022~0.071 in/rev
        Table Size 560x480mm 22.05x18.90 inches
        Vertical Travel  300mm 11.81 inches
        Spindle and Worktable  750mm 29.53 inches
        Main Motor  3kW 3kW
        Dimensions 1090x905x2465mm 42.91x35.63x97.05 inches
        Weight 1250kg 2755.78 pounds


              Delivery

              Delivery is 8-12 Weeks from Deposit

              How to use a Heavy Duty Column Type Pedestal Drill
              1. Set up the machine: Start by mounting the machine on a level and stable surface, and make sure the power supply is properly connected. Adjust the height of the table to match the workpiece, and use clamps to secure the workpiece to the table if necessary.
              2. Choose the correct drill bit: Select the correct drill bit for the material you are drilling and make sure it is properly secured in the drill chuck.
              3. Adjust the speed: Adjust the speed of the spindle to match the material and size of the drill bit. A slower speed is typically recommended for larger and harder materials, while a higher speed is better for smaller and softer materials.
              4. Adjust the depth of the hole: Use the adjustable stop collar on the spindle to set the desired depth of the hole. Make sure to set the stop collar before starting the machine, as it is difficult to adjust while the machine is running.
              5. Start drilling: Turn on the machine and carefully align the drill bit with the marked center of the workpiece. Apply gentle pressure to start the drilling process, and continue until the stop collar reaches the desired depth.
              6. Turn off the machine: Once the drilling is complete, turn off the machine and carefully remove the workpiece from the table. Inspect the hole to make sure it meets your specifications, and make any necessary adjustments to the machine before starting the next operation.

              It is important to always wear proper safety gear when using a heavy-duty column type drilling pedestal machine, including safety glasses, gloves, and hearing protection. Also, be sure to follow the manufacturer's instructions and guidelines for safe and effective use of the machine.

              *Information shown may differ or change without warning*
