STANDARD RD-63x2000 Heavy Duty Radial Drill, with a drilling capacity of 63mm, available from STANDARD and Standard Direct,

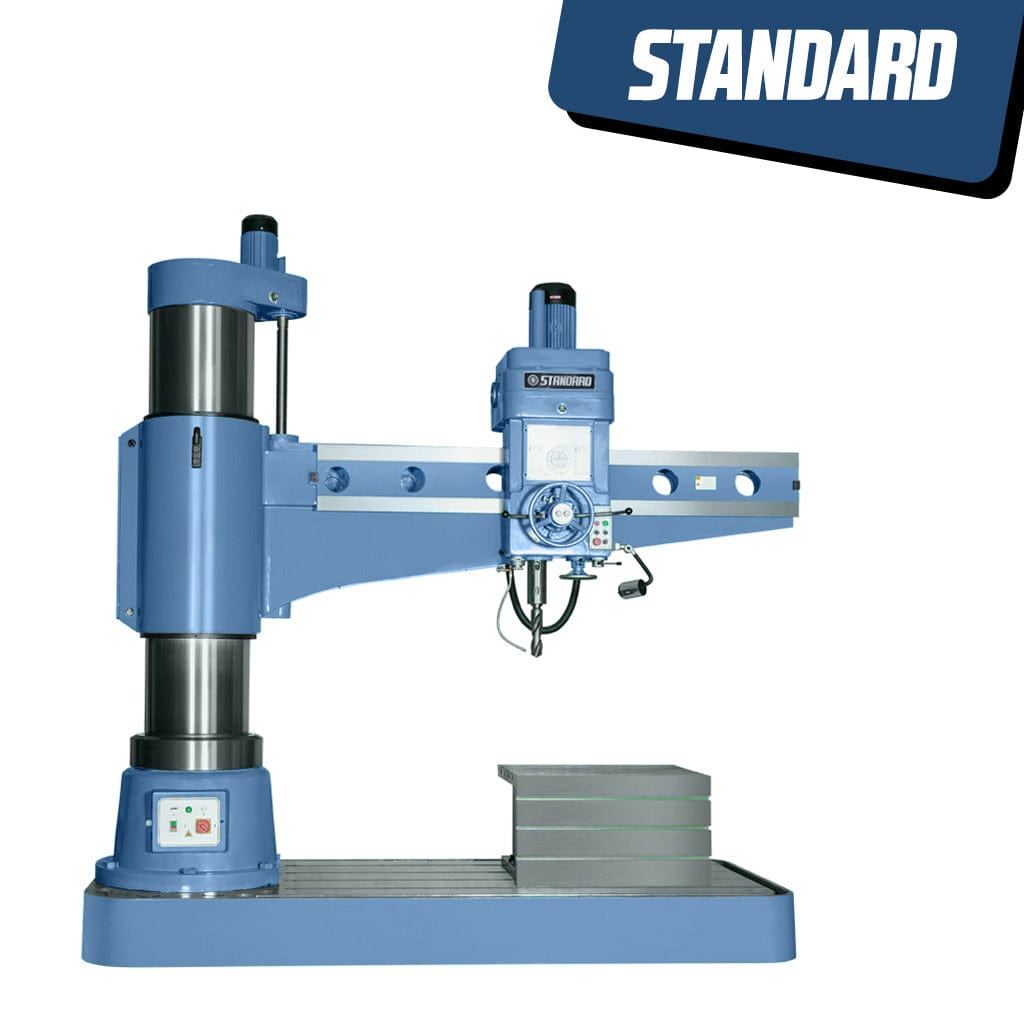

STANDARD RD-63x2000 Heavy Duty Radial Drill

$42,889

*Excludes Local Taxes*

Products are built on order, general delivery is 8~16weeks and includes sea freight to most seaports.

Description

Our Heavy Duty Radial Drill is a robust industrial machine designed for precise hole drilling and tapping in large and heavy workpieces.

Its high-quality construction ensures durability and stability, maintaining accuracy even under demanding conditions. The radial arm design enables flexible positioning of the drill head, allowing drilling at various angles and locations.

With a powerful motor and enhanced power transmission system, it offers high-performance drilling capability. The machine's sturdy build and advanced features make it suitable for heavy-duty applications in industries such as construction, metalworking, and fabrication.

Its consistent and reliable performance enhances productivity, making it an essential tool for large-scale machining operations.

Main Features:

  • High-strength cast iron guide rail, column & box, heat-treated for internal stress-relief, quenched surfaces for hardness, assure long-term stability & accuracy.

  • National standard grade electrical motor for reliable, energy-efficient performance.
  • Precision-ground, carburized & quenched gear box ensures low noise & smooth transmission.
  • Harbin bearings equip rolling components, enabling high-speed cutting.
  • Main shaft box auto-lubes, fully lubricating gears/bearings, solving inadequate lubrication of traditional methods.
  • The travel protection switch on the main shaft prevents damage to the main shaft and gear from misuse or auto-feeding.
  • Column safety lock switch; if forgotten to loosen, auto-lift cuts power, protecting column from stress, turbine & worm screw from slipping.
  • The lead screw is made by a brand manufacturer; special screw processing techniques like tempering & quenching, as well as grinding, give it a double service life & better accuracy. Brass nut provides better wear resistance.
  • Strict product quality accuracy screening from rough casting, parts procurement, and supplier selection ensures overall accuracy of our radial drilling machine.
    Specifications
    Description Metric Imperial
    Drilling Capacity Ø63mm 2.48 in
    Spindle to Column Maximum - 2000mm
    Minimum - 450mm    		 Maximum - 78.74 in
    Minimum - 17.72 in
    Spindle to Worktable Maximum - 1600mm
    Minimum - 400mm    		 Maximum - 63 in
    Minimum - 15.75 in
    Spindle Travel 400mm 15.75 in
    Spindle Taper  MT5 MT5
    Spindle speeds 25-1600r/min  25-1600r/min
    No. of spindle speeds 16 steps 16 steps
    Spindle feeds  0.04-3.20mm/r  0.04-3.20mm/r
    No. of spindle feeds 16 steps 16 steps
    Table Size  630x800mm 24.8x31.5 in
    Spindle head stoke 1550mm 61.02 in
    Main motor  5.5kW 7.38 hp
    Weight  7000Kgs 15432.37lbs
    Dimensions  3080x1250x3291mm 121.34x49.21x129.57 in



      Standard Features
      • Hydraulic Clamping
      • Hydraulic Transmission
      • Hydraulic Pre-Selection
      • Quality Electrical Components
      Delivery

      Machine is build on demand only.

      Delivery is 8-12 Weeks from Deposit

      How to use a radial drilling machine

      Here is a general guide on how to use this type of machine:

      1. Preparation: Make sure the workpiece is securely clamped to the table. Choose the appropriate drill bit and install it in the chuck. Adjust the arm to the desired position and lock it in place.
      2. Starting the machine: Turn on the machine's electrical power. Check the lubrication and coolant systems to make sure they are functioning properly.
      3. Drilling the hole: Lower the spindle onto the workpiece and align the drill bit with the mark where the hole is to be drilled. Start the spindle and apply light pressure to the drill bit. Increase the speed of the spindle as the drill bit penetrates the material. Continue drilling until the desired depth is reached, then stop the spindle.
      4. Removing the drill bit: Loosen the chuck to release the drill bit. Carefully remove the drill bit from the chuck.
      5. Cleanup: Clean the workpiece and the machine. Turn off the machine's power.

      It's important to follow proper safety procedures while using a radial drilling machine. Always wear personal protective equipment such as safety glasses, hearing protection, and steel-toed shoes. Never remove the guard or tamper with any safety devices on the machine. Always make sure the machine is turned off and the power is disconnected before making any adjustments or performing maintenance.

      In summary, using a radial drilling machine with Ø63mm drilling capacity and a 2000mm arm requires preparation, proper start-up procedure, drilling, removing the drill bit, and cleaning up. Safety must always be the top priority when using this type of machine.

      Description

      Our Heavy Duty Radial Drill is a robust industrial machine designed for precise hole drilling and tapping in large and heavy workpieces.

      Its high-quality construction ensures durability and stability, maintaining accuracy even under demanding conditions. The radial arm design enables flexible positioning of the drill head, allowing drilling at various angles and locations.

      With a powerful motor and enhanced power transmission system, it offers high-performance drilling capability. The machine's sturdy build and advanced features make it suitable for heavy-duty applications in industries such as construction, metalworking, and fabrication.

      Its consistent and reliable performance enhances productivity, making it an essential tool for large-scale machining operations.

      Main Features:

      • High-strength cast iron guide rail, column & box, heat-treated for internal stress-relief, quenched surfaces for hardness, assure long-term stability & accuracy.

      • National standard grade electrical motor for reliable, energy-efficient performance.
      • Precision-ground, carburized & quenched gear box ensures low noise & smooth transmission.
      • Harbin bearings equip rolling components, enabling high-speed cutting.
      • Main shaft box auto-lubes, fully lubricating gears/bearings, solving inadequate lubrication of traditional methods.
      • The travel protection switch on the main shaft prevents damage to the main shaft and gear from misuse or auto-feeding.
      • Column safety lock switch; if forgotten to loosen, auto-lift cuts power, protecting column from stress, turbine & worm screw from slipping.
      • The lead screw is made by a brand manufacturer; special screw processing techniques like tempering & quenching, as well as grinding, give it a double service life & better accuracy. Brass nut provides better wear resistance.
      • Strict product quality accuracy screening from rough casting, parts procurement, and supplier selection ensures overall accuracy of our radial drilling machine.
        Specifications
        Description Metric Imperial
        Drilling Capacity Ø63mm 2.48 in
        Spindle to Column Maximum - 2000mm
        Minimum - 450mm        		 Maximum - 78.74 in
        Minimum - 17.72 in
        Spindle to Worktable Maximum - 1600mm
        Minimum - 400mm        		 Maximum - 63 in
        Minimum - 15.75 in
        Spindle Travel 400mm 15.75 in
        Spindle Taper  MT5 MT5
        Spindle speeds 25-1600r/min  25-1600r/min
        No. of spindle speeds 16 steps 16 steps
        Spindle feeds  0.04-3.20mm/r  0.04-3.20mm/r
        No. of spindle feeds 16 steps 16 steps
        Table Size  630x800mm 24.8x31.5 in
        Spindle head stoke 1550mm 61.02 in
        Main motor  5.5kW 7.38 hp
        Weight  7000Kgs 15432.37lbs
        Dimensions  3080x1250x3291mm 121.34x49.21x129.57 in



          Standard Features
          • Hydraulic Clamping
          • Hydraulic Transmission
          • Hydraulic Pre-Selection
          • Quality Electrical Components
          Delivery

          Machine is build on demand only.

          Delivery is 8-12 Weeks from Deposit

          How to use a radial drilling machine

          Here is a general guide on how to use this type of machine:

          1. Preparation: Make sure the workpiece is securely clamped to the table. Choose the appropriate drill bit and install it in the chuck. Adjust the arm to the desired position and lock it in place.
          2. Starting the machine: Turn on the machine's electrical power. Check the lubrication and coolant systems to make sure they are functioning properly.
          3. Drilling the hole: Lower the spindle onto the workpiece and align the drill bit with the mark where the hole is to be drilled. Start the spindle and apply light pressure to the drill bit. Increase the speed of the spindle as the drill bit penetrates the material. Continue drilling until the desired depth is reached, then stop the spindle.
          4. Removing the drill bit: Loosen the chuck to release the drill bit. Carefully remove the drill bit from the chuck.
          5. Cleanup: Clean the workpiece and the machine. Turn off the machine's power.

          It's important to follow proper safety procedures while using a radial drilling machine. Always wear personal protective equipment such as safety glasses, hearing protection, and steel-toed shoes. Never remove the guard or tamper with any safety devices on the machine. Always make sure the machine is turned off and the power is disconnected before making any adjustments or performing maintenance.

          In summary, using a radial drilling machine with Ø63mm drilling capacity and a 2000mm arm requires preparation, proper start-up procedure, drilling, removing the drill bit, and cleaning up. Safety must always be the top priority when using this type of machine.
